Product category : Pipe Fitting

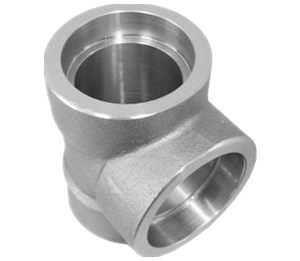

The product name : Forged Tee
Description :
The product name : Forged Tee
Description :
|
Forming Type：
|
Forged. |
|
Size：
|
1/8”-4”(DN6-DN100) |
|
Standard：
|
ANSI B16.11 BS3799, |
|
Material：
|
Stainless Steel, Nickel Copper, Carbon Steel, Low Alloy Steel, Alloy Steel. |
Socket Elbow Socket Tee Socket Cross
|
Nominal Diameter
|
Depth of Socket |
Dimension of Socket |
Wall Thickness |
Center to Bottom of Socket
|
||||||||
|
A
|
||||||||||||
|
Cmin
|
90°Elbow、Tee、Cross |
45°Elbow |
||||||||||
|
DN
|
NPS
|
Jmin
|
d1 |
3000LB
Sch80 |
6000LB
Sch160 |
9000LB
XXS |
3000LB
Sch80 |
6000LB
Sch160 |
9000LB
XXS |
3000LB
Sch80 |
6000LB
Sch160 |
9000LB
XXS |
|
6
|
1/8
|
10
|
10.7 |
3.2
|
3.5
|
-
|
11
|
11
|
-
|
8
|
8
|
-
|
| 8 | 1/4 | 10 | 14.1 | 3.3 | 4.0 | - | 11 | 15 | - | 8 | 8 | - |
| 10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 13 | 15 | - | 8 | 12 | - |
| 15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 16 | 19 | 25 | 11 | 13 | 16 |
| 20 | 3/4 | 13 | 27.4 | 4.3 | 6.1 | 8.6 | 19 | 22 | 28 | 13 | 14 | 18 |
| 25 | 1 | 13 | 34.2 | 5.0 | 7.0 | 10.0 | 22 | 27 | 32 | 14 | 18 | 22 |
| 32 | 1.1/4 | 13 | 42.9 | 5.3 | 7.0 | 10.6 | 27 | 32 | 35 | 18 | 21 | 22 |
| 40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 32 | 38 | 38 | 21 | 25 | 25 |
| 50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 | 38 | 41 | 41 | 25 | 29 | 29 |
| 65 | 2.1/2 | 16 | 76.9(73.8) | 7.7 | 12.5 | - | 41 | 57 | - | 29 | 32 | - |
|
80
|
3 | 16 | 89.8 | 8.3 |
13.8
|
-
|
57 | 64 | - |
32
|
35 | - |
|
100
|
4
|
19
|
115.5 |
9.4
|
-
|
-
|
66
|
-
|
-
|
42
|
-
|
-
|
