Product category : Pipe

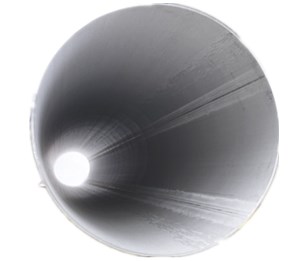

The product name : Weld Pipe
Description :
The product name : Weld Pipe
Description :
| Material: |
TP304, TP304L, TP316L, TP316Ti,TP316LN, TP317, TP317L, TP321,TP310S, Monel400, INCONEL600, 625, 617, 690,693, INCOLOY 800, 825, C276, N08028 API 5LB, X42, X65, ASTM A 53: Gr. A, Gr B, ASTM A 106: Gr. A, Gr B UNS S31803, S32205, S32750, S32760 |
| Dimension | Diameter x Wall chickness |
| Welded | 9.0～2540 x 0.5～25.0mm |
Size：
| Outside diameter | Outside | Thickness | ||||
| SCH 5S | SCH 10S | SCH 20S | SCH 40S | |||
| (A) | (B) | mm | mm | mm | mm | mm |
| 350 | 14' | 355.6 | 3.96 | 4.78 | 7.92 | 11.13 |
| 400 | 16' | 406.4 | 4.19 | 4.78 | 7.92 | 12.7 |
| 450 | 18' | 457.2 | 4.19 | 4.78 | 7.92 | 14.27 |
| 500 | 20' | 508.0 | 4.78 | 5.54 | 9.53 | 15.09 |
| 550 | 22' | 558.8 | 4.78 | 5.54 | 9.53 | 15.09 |
| 600 | 24' | 609.6 | 5.54 | 6.35 | 9.53 | 17.48 |
| 650 | 26' | 660.4 | 5.54 | 7.92 | 12.7 | 17.48 |
| 700 | 28' | 711.2 | 5.54 | 7.92 | 12.7 | 17.48 |
| 750 | 30' | 762.0 | 6.35 | 7.92 | 12.7 | 17.48 |
| 800 | 32' | 812.8 | 7.90 | 12.7 | 17.48 | |
| 850 | 34 | 863.6 | 7.92 | 12.7 | 17.48 | |
| 900 | 36' | 914.4 | 7.92 | 12.7 | 19.05 | |
| 1000 | 40' | 1016.0 | 9.53 | |||
Tolerances on dimensions table：
| Standard | Outside(mm) | Thickness(mm) | Length(mm) | |
| ASTM A312 | ≤48.26 | +0.40 -0.80 | +No special provisions(Unspecified) -12.50% | Appoint Length Definite cut length +6.40 -0 |
| ＞48.26~114.30 | +0.80 -0.80 | |||
| ＞114.30~219.08 | +1.60 -0.80 | |||
| ＞219.08~457.20 | +2.40 -0.80 | |||
| ＞457~660 | +3.20/-0.80 | |||
| ＞660~864 | +4.00/-0.80 | |||
| ＞864~1219 | +4.48/-0.80 | |||
| JIS G3459 | ＜30.00 ±0.30 ≥30.00 ±1.00% | ＜2.00 ±0.20 ≥2.00 ±10% | Appoint Length Definite cut Length | |
| GB/T 12771 | ＜13.00 ±0.20 13.00~40.00 ±0.30 ≥40.00 ±0.80% | ≤4.00 +0.50 -0.60 ＞4.00 ±10% | +20.00 -0 | |
| EN 10217-7 | D1±1.50% with±0.75mm(min) D2±1.00% with±0.50mm(min) D3±0.75% with±0.30mm(min) D4±0.5% with±0.10mm(min) |
T1±15.00% with±0.60mm(min) T2±12.5% with±0.40mm(min) T3±10.00% with±0.20mm(min) T4±7.50% with±0.15mm(min) T5±5.00% with±0.10mm(min) EN ISO 1127 |
||
