Product category : Shoe Machine

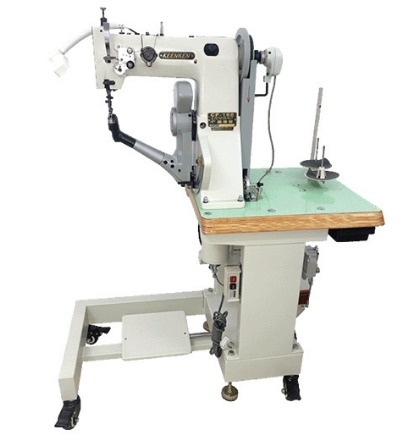

The product name : Outsole Stitching Machine
Description :


Features:

■The lightweight rocker arm structure design makes the operator less prone to fatigue; The oil immersed lubrication system can be stored under normal use without the need to replace the horn.

■The separated transmission structure automatically cuts off the power and stops running when the sewing line is stuck, protecting the machine from damage.

■The computer positioning motor can automatically position and lift the foot, and the operating speed can be adjusted according to the operator's needs. The Z high speed can reach 2000 revolutions per minute.

■This machine is suitable for side seam locking edge processing of sports shoes, casual shoes, especially children's shoes.


 技术参数Technical



 电动机(Motor)

 750W/380V Three-phase

 线迹长度(Stitch length)

 3-13mm

 缝制厚度(Sewing thickness)

 1.5-6mm

 机针(Sewing needle)

 Cp x 5

 重量(Weight)

 150kg

 外型尺寸(Overall size)

 107x56x125cm(LxWxH)

 梭心直径/厚度(Diameter /thickness)

 23/8.5mm
